Þrýstiminnkari 0-15 ltr. – Oxyway Fast – Weinmann
49.320 kr.
OXYWAY Fast
When You Need to Act Fast
In an emergency, oxygen treatment or oxygen inhalation needs to be started as quickly as possible via a mask or nasal cannula.

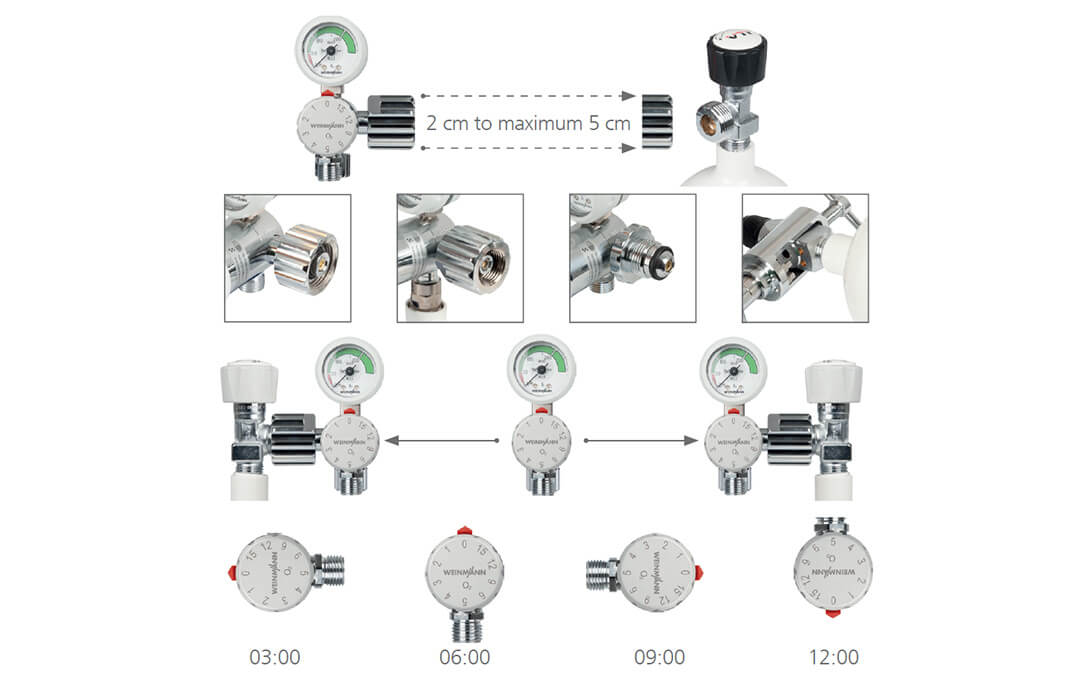

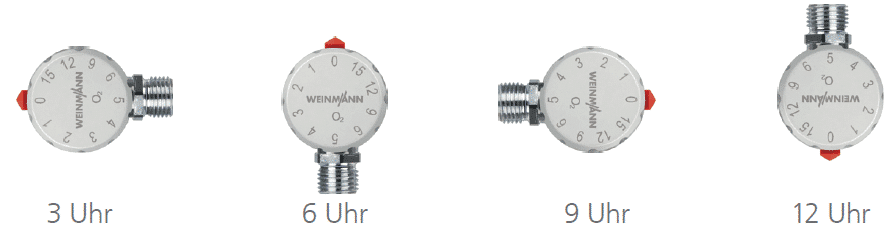

All Fast pressure reducers are equipped with a multistep flow selector made from aluminum to set the flow and a flow outlet (UNF 9/16”). This means you can set predefined flow levels easily. The available levels are laser-engraved onto the side and front of the multistep flow selector and the selector clicks into place. The red indicator means the current flow setting can be identified immediately.

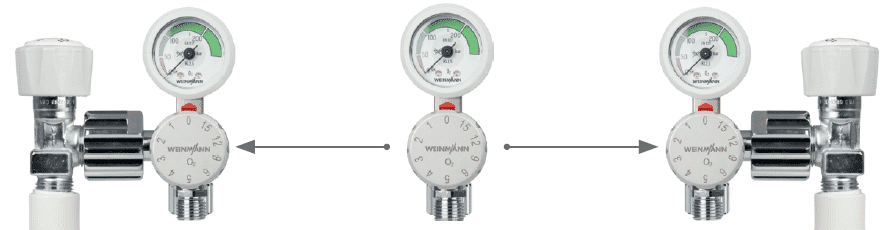

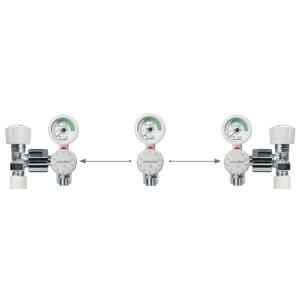

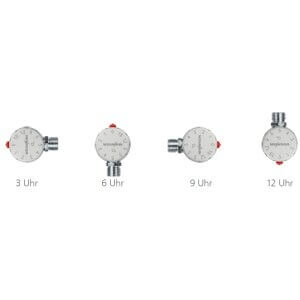

A pressure outlet (G 3/8”) is also available for the Fast II variants. Every Fast pressure reducer has a rotatable pressure gauge arranged upright or in a space-saving design lying against the housing.
Á lager
Hægt er að fá fleiri útfærslur allt eftir þörfum.
| Technical Data | OXYWAY Fix | OXYWAY Fast | OXYWAY Fine |
| Dimensions: | 63 mm x 64 mm x 71 mm | 63 mm x 64 mm x 108 mm | 115 mm x 96 mm x 99 mm |
| Weight: | Approx. 500 g | Approx. 610 g | Approx. 730 g |
| Temperature (operating conditions): | -20° C to + 60° C | -20° C to + 60° C | -20° C to + 60° C |
| Height above sea level (operating conditions): | Up to 5 000 m | Up to 5 000 m | Up to 5 000 m |
| Resistance to shock and vibration: | EN ISO 10524-1 EN 1789 |
EN ISO 10524-1 EN 1789 |
EN ISO 10524-1 EN 1789 |
| Inlet pressure p1: | 200 to 10 bar | 200 to 10 bar | 200 to 10 bar |
| Outlet pressure (operating pressure)/outlet flow: | 4.5 bar 190 l/min Fixed 4 l/min |
4.5 bar 190 l/min 0 to 15 l/min |
0.5 to 6.2 bar 3 to 15 l/min |
