Lýsing
- Material Type: ASA+PC+FR (UL 94 V-0)
- Shape: Compact Premium Controller
- Specs
- 6 Dynamic RGB switches
- Dynamic hierarchy switch selection (parent & child configurable)
- Dynamic master switch selection
- Dynamic 999 & kill switch feature
- Easy user configurable latching or momentary functions
- Factory Reset Feature

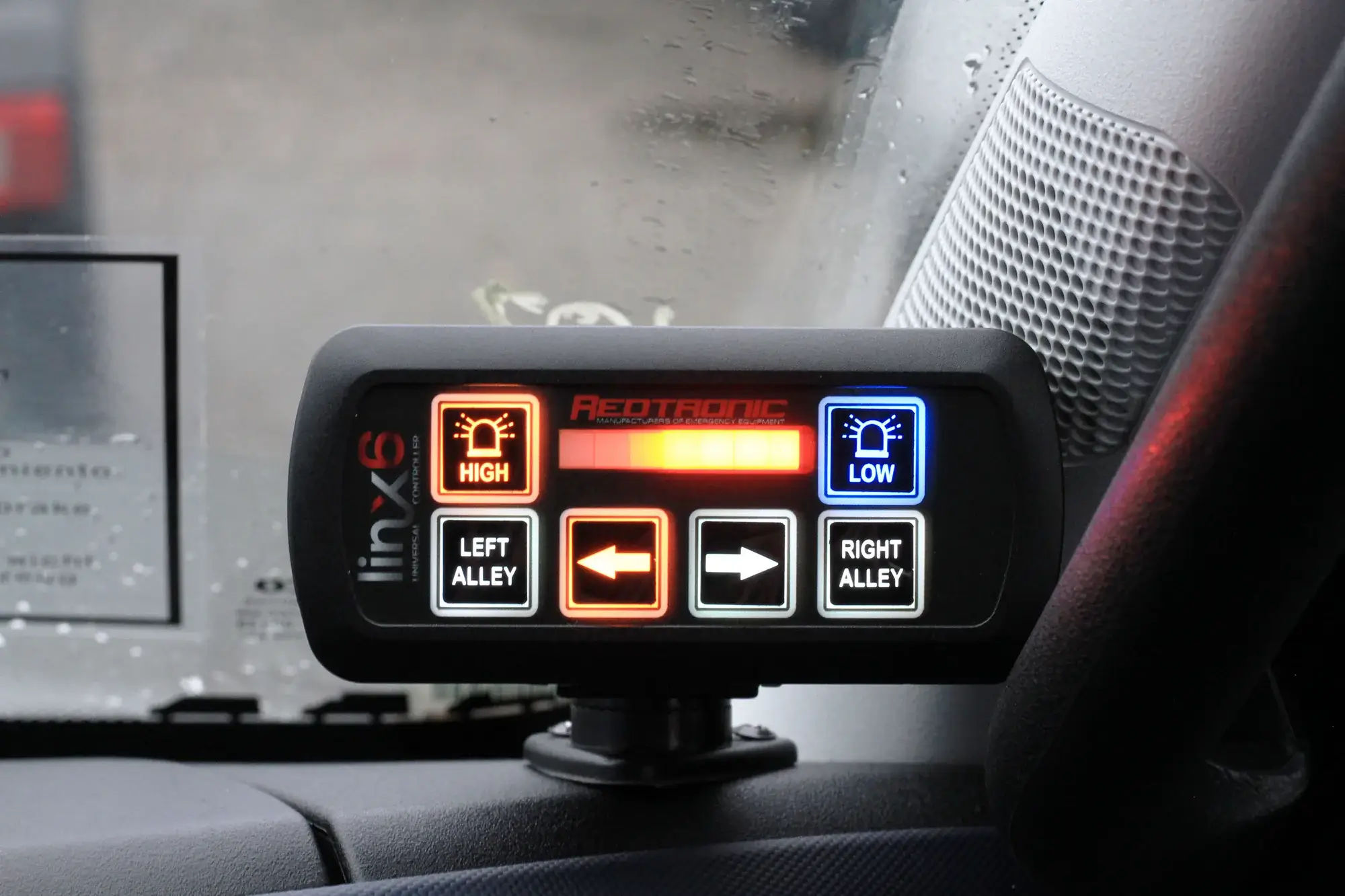

- User configurable traffic director LED signal bar (can be deactivated)
- User configurable back light & activation switch colour
- Standard transparent decal labels included
- Over current monitor and deactivation feature (3 flashes & beeps)
- Automatic 90 minute sleep mode & single switch wake-up feature
- Activate/deactivate audible buzzer
- EMC: EMC/R10 Compliant
- IP Rating: IP52
- Voltage Spec: 12 & 24 volt operation (minimum working voltage (DC) 8v / maximum working voltage (DC) 30v)
- Operating Temperature: -40C TO +85C
- Warranty: 2 Year Warranty
Tæknilýsing
- Dimensions, Without Connector: Length 116mm (4.56″) x Width 54mm (2.12″) x Depth 21mm (0.82″)
- Dimensions, With Connector: Length 116mm (4.56″) x Width 54mm (2.12″) x Depth 39mm (1.53″)
- Switches
- Switch 1 & 2 – 10amp (max) Overall limit 15amps / Switches 3,4,5,6 – 2amp (max) Overall limit 8amps
- User configurable ‘activation’ switch colour (Red, amber, green, blue & white)
- Backlit switches (white)
- Latching & Momentary
- 100000 Cycles Switch Life

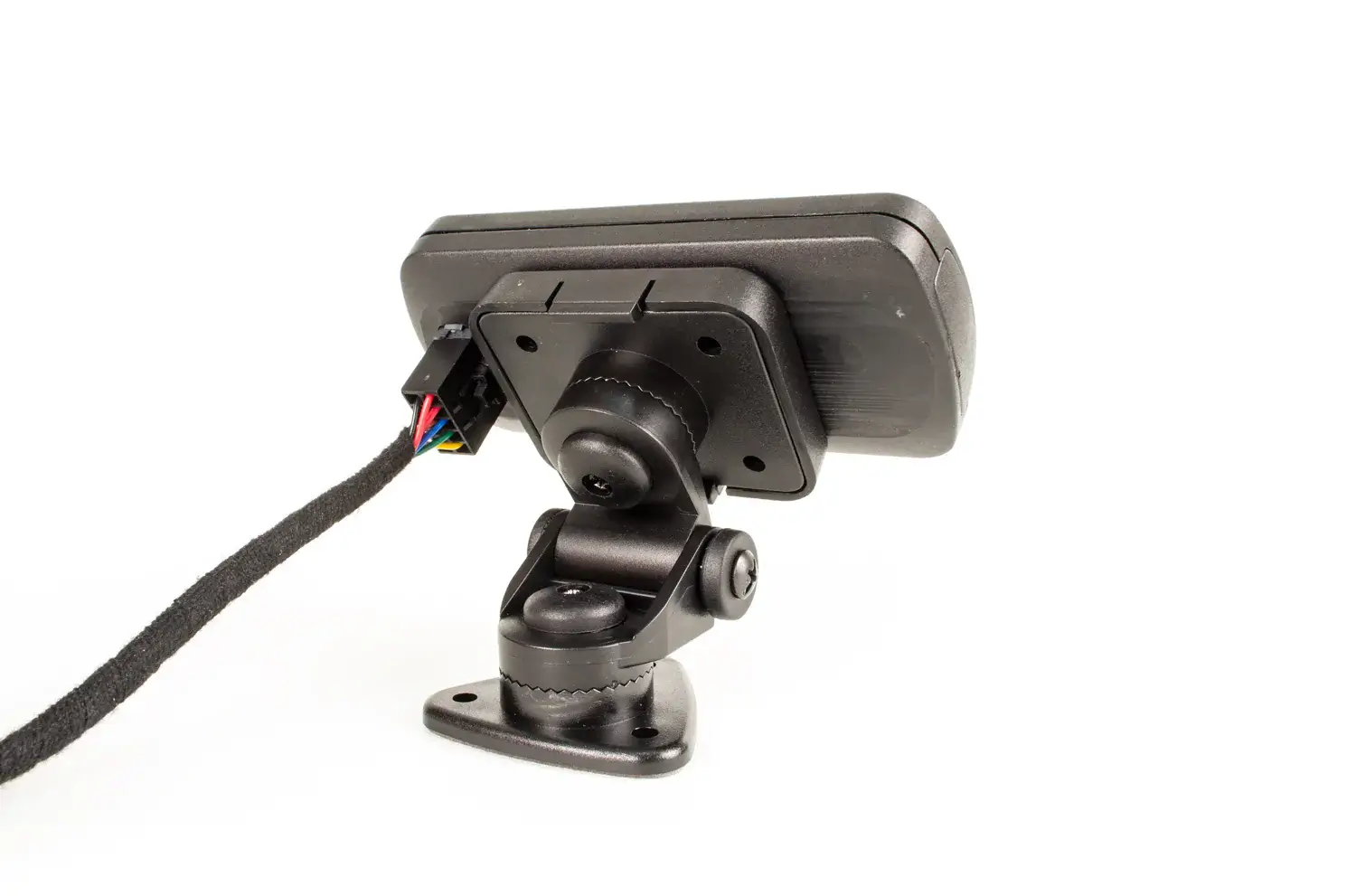

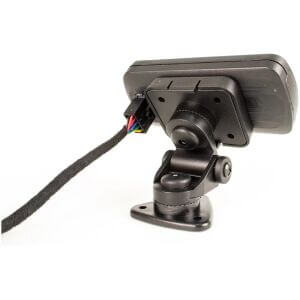

- Cable: 3000mm rear cable (8 x power and switched output cable)
- Monitoring
- Overcurrent monitoring per channel
- Overall overcurrent monitoring across the 6 outputs
- RoHS compliant: Yes
- Sleep / Idle mode: 2 hours
- Sleep / Idle mode current draw: 30mA
- Standby Current: 30mA
- Leakage current: Negligible
